GRASPEGO-R50 with bar clamps
GRASPEGO-R50 fits nearly all Bar clamps in the market.
The range of bar clamps to be used with the GRASPEGO-R50 (Figure 2 - the width of C):
- For clamps with jaws’ thickness up to 2.5mm, the R50 fits jaw‘s width within the range of 15.5mm to 42mm.
- For clamps with jaws’ thickness up to 10mm, the R50 fits jaw‘s width within the range of 10mm to 36.5mm.
A
_v1.png?crc=502865106)
Figure 1
B
C
Figure 2
Top side
_v1.png?crc=294354358)
Figure 3
Step 1: Sliding the R50 along the clamp (See Figure 2).
A - R50’s Jaw
B - Final position of the R50 relative to the clamp
C - Clamp’s Jaw
First, open the R50’s fastener (see Figure 5) to a width allowing you to easily slide the R50’s jaws (made of metal), along the clamp’s jaw.
Second, start to close the fastener to the initial contact/resistance between the R50 jaws and the clamp’s jaw.
Only one side operation required for closing the R50.
Step 2: The R50’s fastener is tightened to its final position (See Figure 3).
Make sure the R50 rear side is well attached to the clamp’s jaw.

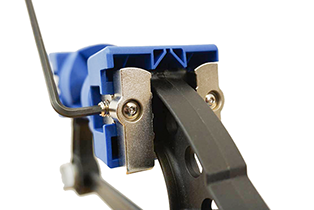

Tighten the fastener to its final position, only by hand power with the Allen key.
Never use excessive maximum power to fasten the Graspego-R50 on your clamp.

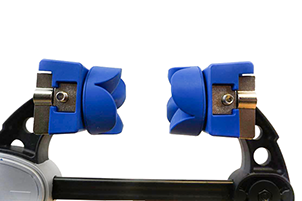

Ready to use: The R50 jaws should be in the same direction as the clamp’s jaws (See Figure 4).
Before any New Grip - Make sure the R50 is well attached to the clamp’s jaw therefore not able to move in any direction.
Assembling two R50 on one clamp
- Ready to use -
_v1.png?crc=524814324)
Figure 6
Notice: It is forbidden to open any other screws of the R50
%20-%20no%20defect%20sign.png?crc=3971246782)
Figure 4
Figure 5
R50’s fastener
Tip: Use a vise grip to temporarily hold the clamp, then assemble the R50 to the clamp more easily.
Taking off the clamps’ pads: choose whether to leave or remove the pads of the clamp depending on their size and strength. The R50 will leave small grip marks along the closing lines of the clamp.
